i30 N Specifications

i30 N Project C Limited Edition: Lighter, lower, and more aggressive.

i30 N Project C
Limited 600 units only available in the European market

The C stands for three things:

‘Area C’ - high performance test circuit at Hyundai Namyang R&D Center
Carbon fiber – CFRP(Carbon Fiber Reinforced Plastic) body parts firstly used for a road car
Centre of gravity - lowered the right amount to care about performance without sacrificing dynamics

Adding Lightness
Total -50.004kg lighter

Front Splitter +0.24kg
19 Inch Forged OZ Racing Wheels -22kg
Carbon Fiber Hood -7.2kg
Carbon Fiber Side Sills -0.998kg
Carbon Fiber Rear Diffuser -0.386g
Aluminium Knuckles -4.66kg
Sabelt® Lightweight Bucket Seats -15 kg

Optimized Dynamics
For better responsiveness

Lowered center of gravity
Specifically retuned driving modes
Recalibrated steering and dampers
New shorter higher-stiffness suspension springs

Inspired by the i30 N Option Show Car from last year, Project C came down to lightweight parts, better tires, and visual tweaks. This pushes the limits of the i30 N, providing an all-new experience as well as pure dynamic and responsive satisfaction.

Passion and Dedicationfor Performance

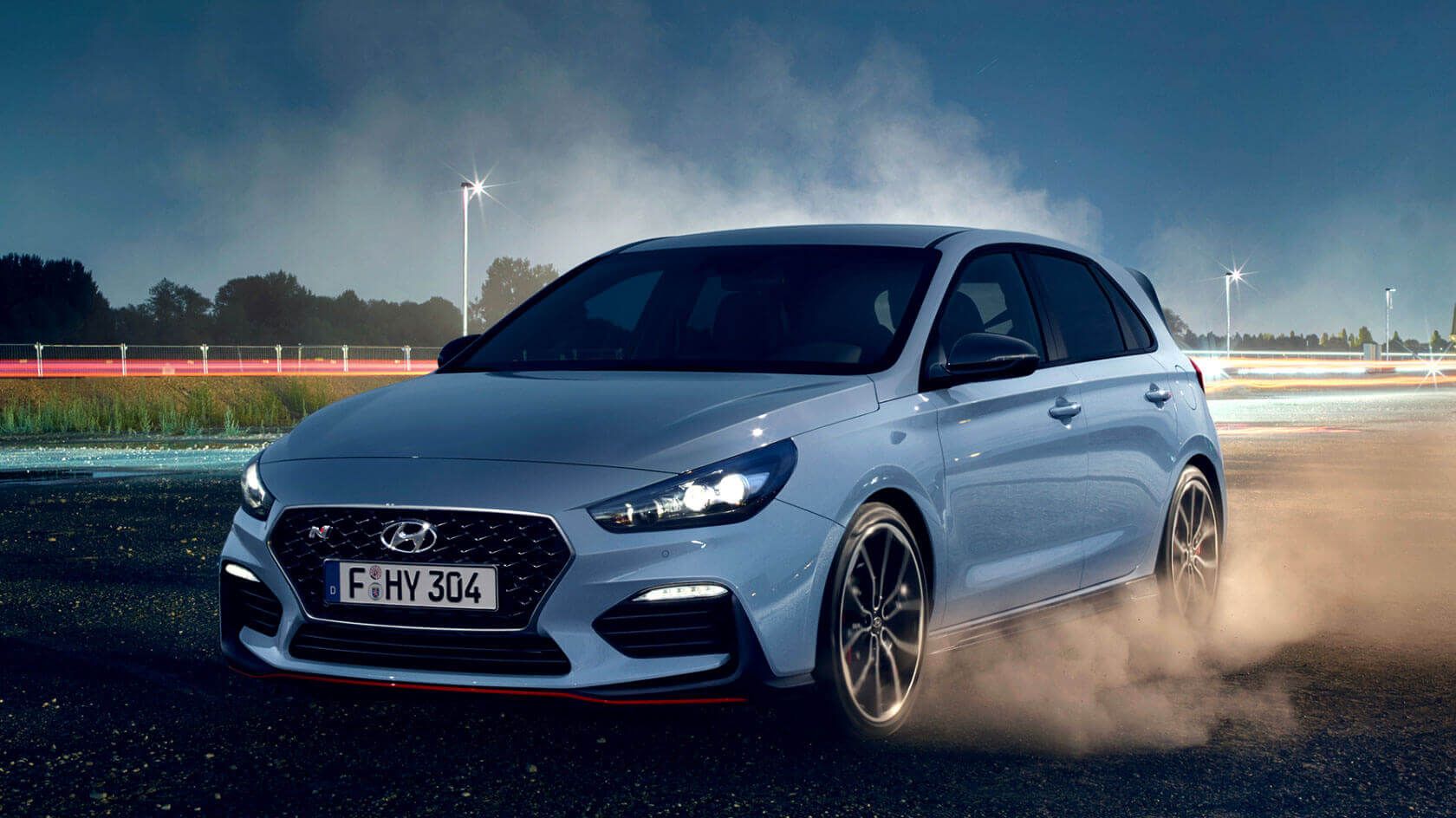

The first high-performance car under the Hyundai N Brand. The i30 N is born on the track and engineered for fun driving.

Feel the Feeling

A thrilling driving pleasure measured in B.P.M. A high-performance hot hatch with a sporty design and motorsport-inspired technologies. Everything designed for one goal – Fun Driving.

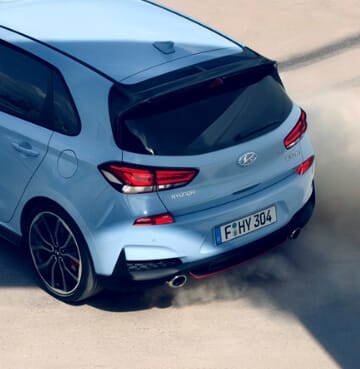

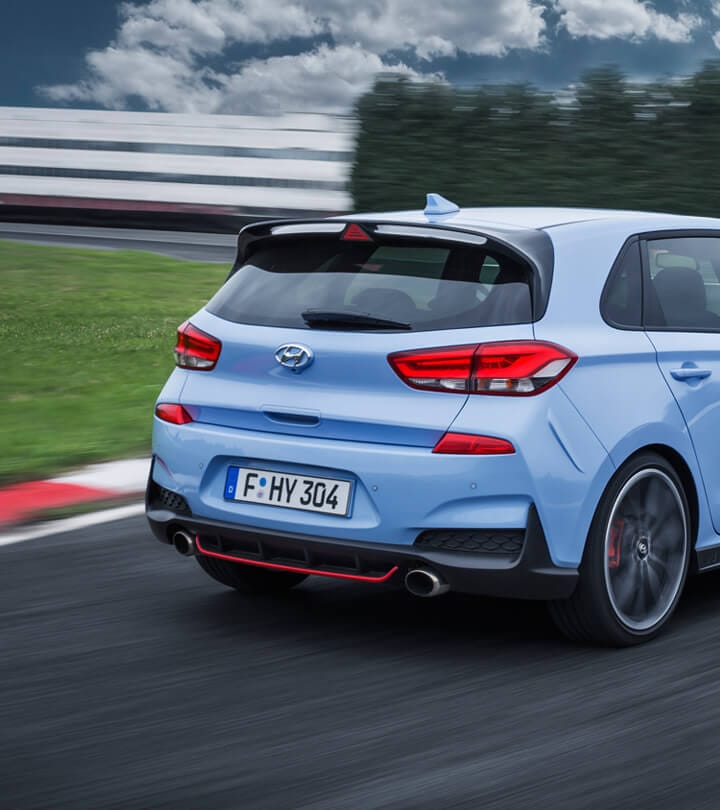

Road to Track

The i30 N is ready for urban commuting and thrilling track driving. Five different driving modes offer a variety of configurations. Specially tuned powertrain, chassis, and high-grip tyres for track driving.

N Grin Control System

At the push of a button, the N Grin Control System gives you the choice of five distinct driving modes to match your mood. The different modes change the character of the car, adjusting the parameters of the engine, the dampers, Electronic Stability Control (ESC), N Carving differential system, engine sound, steering, and Rev matching.

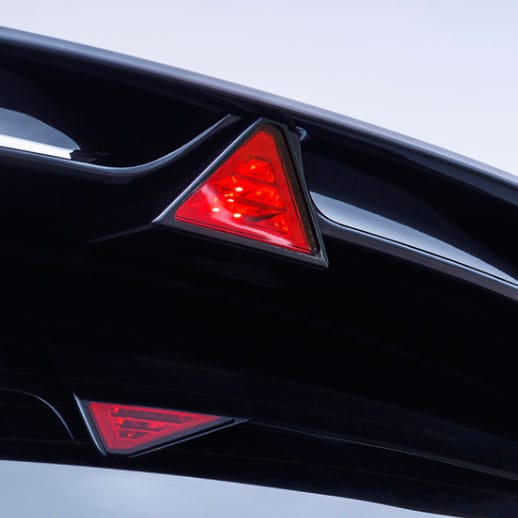

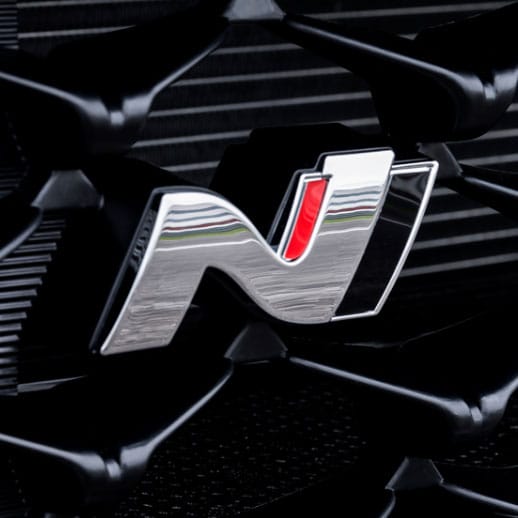

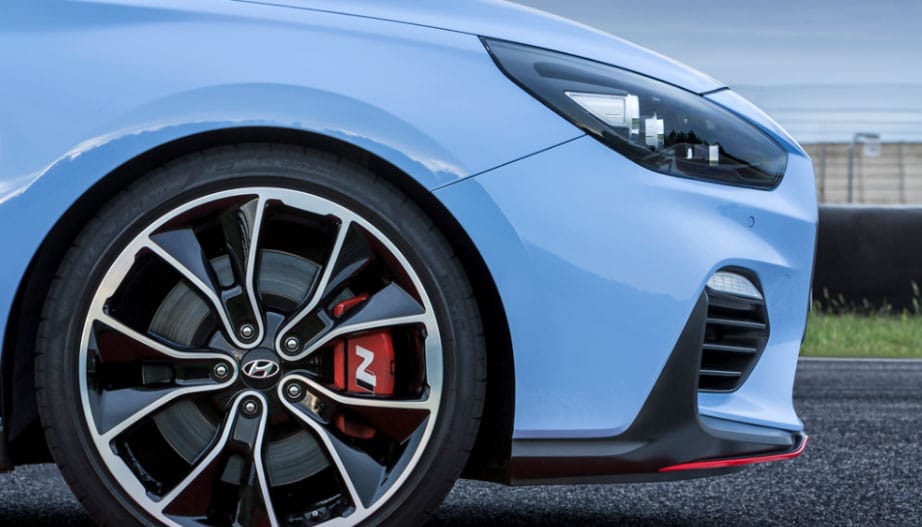

Designed for Performance

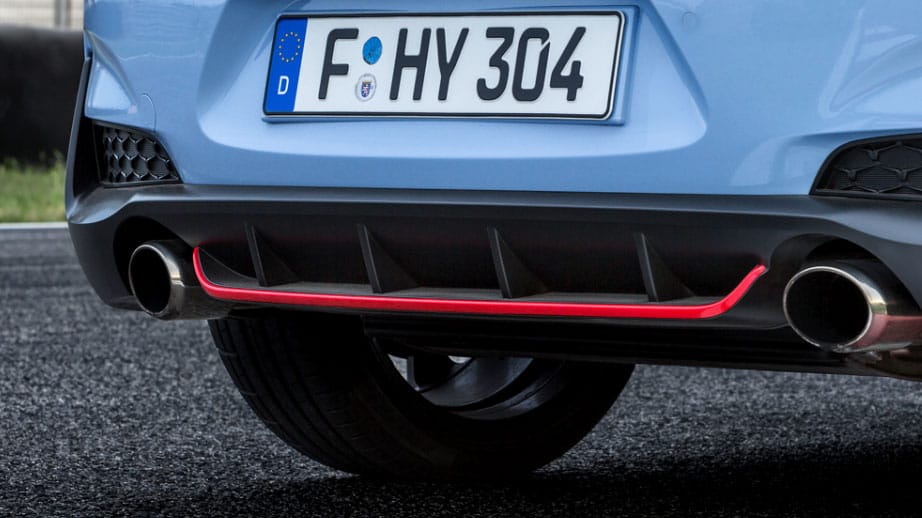

Turn Heads – not just with the sound The i30 N’s aggressive design elements and lowered body reflect its performance credentials.

The i30 N is fast and precise. It gives a good sensation, similar to a race car. Like my WRC car, the i30 N is all about performance.

Hyundai World Rally Team driver

Thierry Neuville

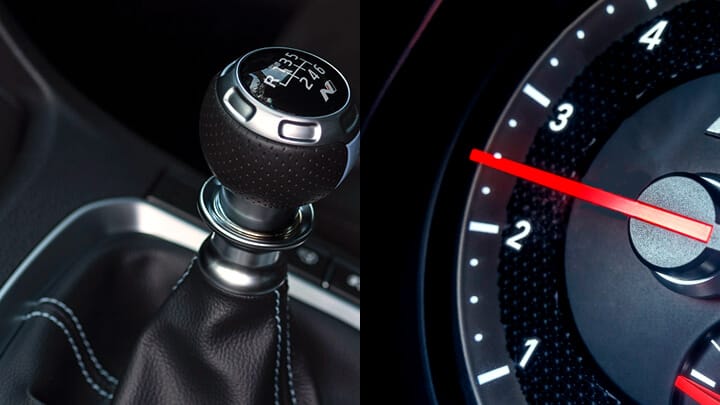

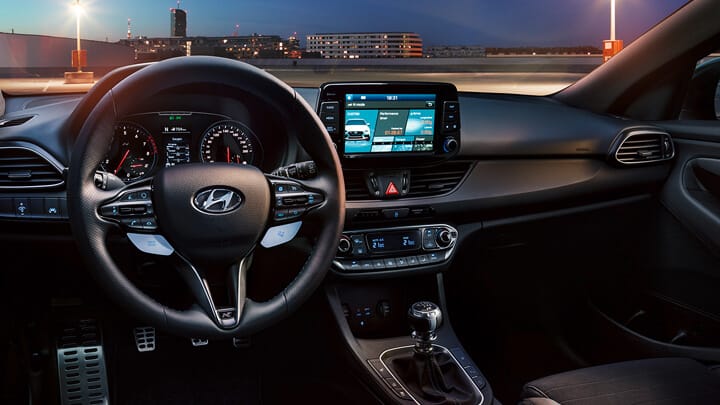

A True Performance Cockpit

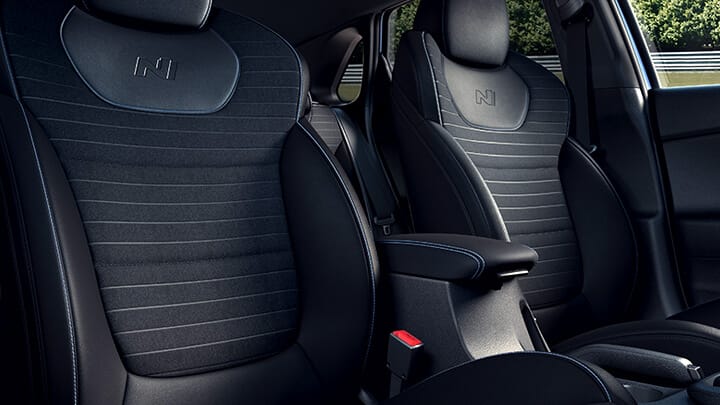

The i30 N is at your command. The ergonomic cockpit is completely driver-focused, connecting you and your i30 N at every touchpoint, every second. The i30 N cockpit is as much about comfort as it is about control. The sleek sport seats also offer excellent comfort and support in any given situation.

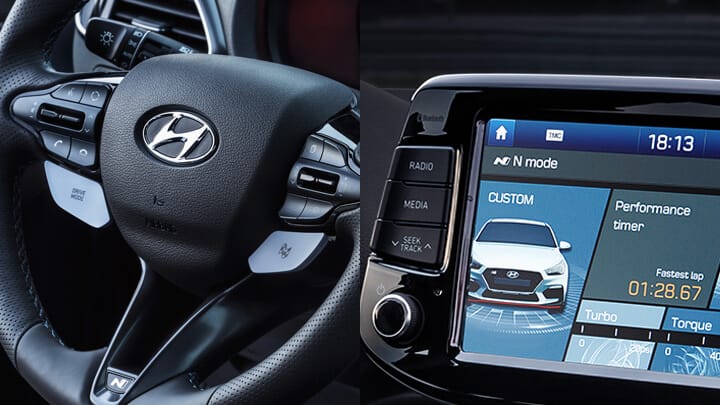

N car steering wheel & N mode navigation

Product Walkaround Review

Raf van Nuffel, Head of Product Marketing& Pricing at Hyundai Motor Europe, explains the car’s highlights.

Gallery

1 / 10

2 / 10

3 / 10

4 / 10

5 / 10

6 / 10

7 / 10

8 / 10

9 / 10

10 / 10

Specification

The blistering performance of the i30 N is powered
by a highly responsive 2.0-litre direct-injection turbo engine, which is available
with 250 PS standard or 275 PS in the Performance package.

Engine Power 250ps
Alloy Wheel 18inch

Michelin Pilot Super Sport Tyres

Electronic Sound Generator
R-MDPS
Navigation 8”
N Grin Control System
Rev Matching
ESC
Launch Control
8” Display Audio with Touchscreen
High-Performance Driving Data

Overview

Category Cars
Product Label Theta II 2.0 T-GDi 6 Speed Manual FWD (Standard)
Model Name i30 N
Seats 5

Performance

Engine

Engine Label 2.0 Theta II TCi GDi
Displacement(cc) 1,998
Max. Speed (kph) 250
Max. Power (ps / rpm) 250/6,000
Max. Torque (Nm / rpm) 353/1,450~4,000
Acceleration (0 - 100 kph) (sec) 6.4
Braking Distance (100 - 0 kph) (m) 34.6
Number of Cylinders 4
Valves of Cylinder 16

Transmission

Transmission Type 6-Speed Manual FWD

Fuel Consumption

Fuel Type Gasoline
Fuel Consumption(Urban / City)(liter / 100km) 10.7
Fuel Consumption(Extra Urban / Highway)(liter / 100km) 5.9
Fuel Consumption(Combined)(liter / 100km) 7.7
CO2 Emission (Combined) (g/km) 176

Dimension

Exterior

Overall Length (mm) 4,335
Overall Width (mm) 1,795
Overall Height (mm) 1,451
Wheelbase (mm) 2,650
Front Wheeltread (mm) 1,557/1,556
Rear Wheeltread (mm) 1,566/1,564

Cargo

Cargo Volume (VDA; liter) 395

Weight

Lightest Curb Weight (kg) 1,400
Heaviest Curb Weight (kg) 1,480
Gross Vehicle Weight (kg) 1,950

Wheels

Wheels & Tyres

Wheels 7.5Jx18 AL
Tyres 225/40 R18

Vehicle options and details on this website may vary by country, and some vehicle models may not be available in your country
All descriptions are subject to change without notice.
For more detailed information, select your country's dealer website.

Engine Power 275ps
Alloy Wheel 19inch

Pirelli P-Zero Tyres
Variable Exhaust Valve System
N Corner Carving Differential

Electronic Sound Generator
R-MDPS
Navigation 8”
N Grin Control System
Rev Matching
ESC
Launch Control
8” Display Audio with Touchscreen
High-Performance Driving Data
