The Dawn of a New Hybrid Era

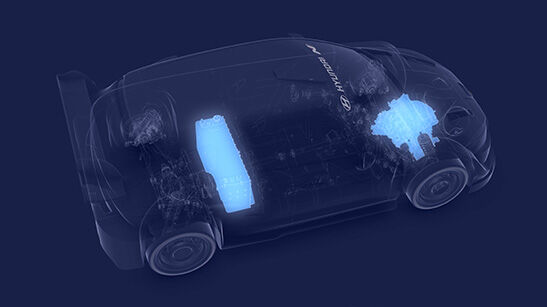

The Rally One, which is the brand-new version of the World Rally Car, has changed a lot from before. Adding a motor to the 1.6L turbo engine, the rally became ‘hybrid’. A package containing a 100 kW (134 hp) motor, a 3.9 kWh battery, and a control unit is housed right in front of the rear axle. The center differential has been removed, the bodyweight has been increased to 1,260 kg, and a few aerodynamic parts and suspension have been simplified. The instant output has been increased from 380 hp to a maximum of 500 hp. Another difference is the chassis. Instead of reinforcing mass-produced monocoques, the rally cars use steel pipe space frame underneath the body.
WRC: The Ultimate Challenge
As we embark on our ninth season at the pinnacle of international rally, we have outlined our desire to compete for both the manufacturers’ and driver’s championship titles in 2022.
Ready for 2022 WRC Hybrid
Built To Overcome The World’s Most Toughest Roads
Rallying is the purest test of man and machine, in which drivers and their co-drivers fight for victory on all kinds of terrain, and the FIA World Rally Championship (WRC) is the undisputed pinnacle.
Aiming for Titles as WRC Powers into New Hybrid Era
Technical Specifications
We are proud to present the Hyundai i20 N WRC Rally1, whose role is
to enhance Hyundai’s global motorsport presence. Hyundai Motorsport’s crew
of dedicated drivers and co-drivers will compete individually in short,
timed stages with these upgraded cars in WRC 2022.
We are proud to present the Hyundai
i20 N WRC Rally1, whose role is to enhance
Hyundai’s global motorsport presence.
Hyundai Motorsport’s crew of dedicated
drivers and co-drivers will compete individually
in short, timed stages with these
upgraded cars in WRC 2022.
Hyundai Motorsport turbocharged engine with direct injection
Performance380 hp (internal combustion engine) 134 hp (electric motor)
Torque~ 450 Nm
Transmission5 speed manual
Drive TrainFour Wheel Drive
0-100km/h< 4 sec
-

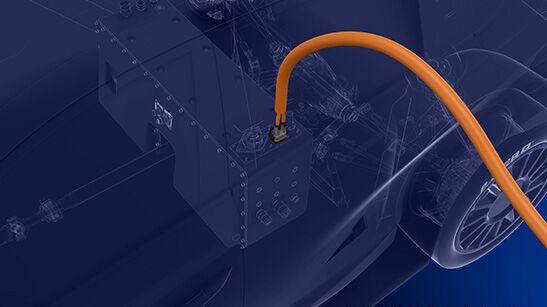

Hybrid Unit
-
Common plug-in hybrid unit, alongside an internal combustion engine (ICE)
Hybrid unit composed of:
· 12,000RPM motor generator unit (MGU)
· inverter control unit
· 3.9kWh battery operating up to 750 volts - Configuration Connected from the MGU to all four wheels via the propeller shaft to maximize acceleration performance
- Weight 87kg
- Power (max.) 100kW (134hp)
- Torque (max.) 180Nm
Internal Combustion Engine
-
Type
Hyundai Motorsport turbocharged
engine with direct injection - Displacement 1,600cc
- Bore / Stroke 83 / 73.8
- Power (max.) 380hp at 6,500 RPM
- Torque (max.) 450Nm at 5,500 RPM
- Air restrictor 36mm
- Lubrication Shell Helix Ultra
-
Common plug-in hybrid unit, alongside an internal combustion engine (ICE)
-
Transmission
- Type 4-wheel drive
-
Gearbox
Manual gearbox, five forward gears
and one reverse - Differential Mechanical Front and Rear
- Clutch Cerametallic twin-disk
Cockpit
- Seats OMP
-
Belts
OMP, multiple fixing points
belts with adjustable straps
Tires
-
Pirelli tires
P Zero for tarmac,
Cinturato for wet tarmac,
Sottozero for ice/snow
Scorpion for gravel
-
Chassis / Bodywork
-
Structure
FIA-conformant reinforced
steel with welded multi-point
roll cage and composite fiber
bodywork components - Length / Width 4,100/1,875mm
- Track width 1,665mm
- Wheel base 2,630mm
- Fuel tank capacity 60 liters
- Weight min 1,260kg
- Weight max 1,430kg with driver and co-driver
Chassis / Suspension
- Front / Rear MacPherson struts with adjustable dampers
- Steering Hydraulic power-assisted rack and pinion
-
Braking system
Ventilated disc brakes
(370mm on tarmac; 300mm on gravel)
Air-cooled 4-piston calipers - Handbrake Hydraulic control
- Wheels 8x18 inch for tarmac, 7x15 inch for gravel
-
Structure
FIA-conformant reinforced

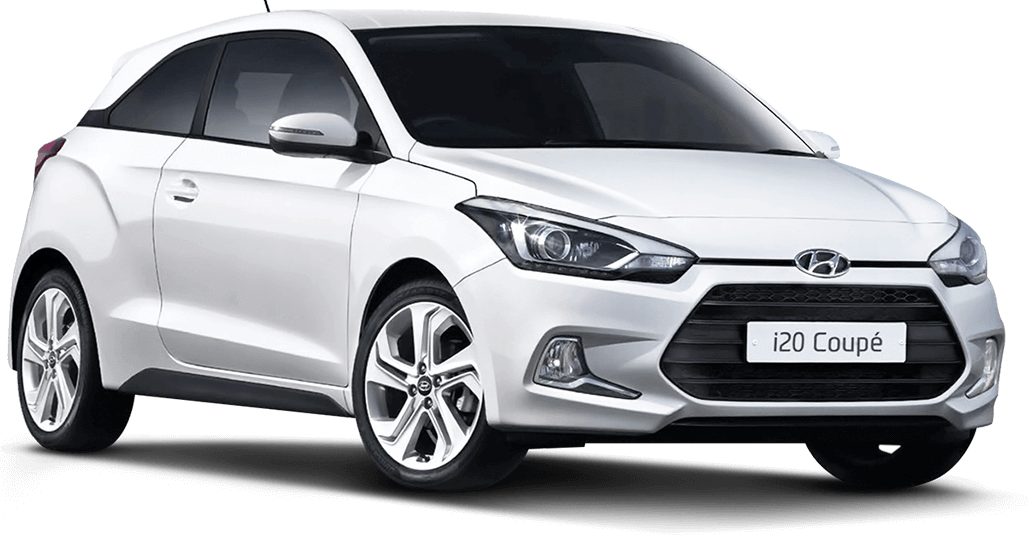

1.6 T-GDI
Performance201 HP
Torque275 NM
Transmission6 Speed Manual
Drive TrainFront Wheel Drive
-
Transmission
- Type 2-wheel drive
- Gearbox 6 speed manual transmission
-
Differential
N Corner Carving Differential
(Mechanical Limited Slip
Differential) - Weight min 1,190kg
- Weight max 1,190kg
-
Tank
- Fuel tank capacity 1,190kg
- Fuel 1,190kg
Engine
-
Type
High flat power 1.6L
turbocharged engine with
direct injection - Displacement 1,600cc
- Power (max.) 204 hp
- Torque (max.) 275 NM
-
Chassis
- Length / Width 4,075/1,750mm
- Wheel base 2,580mm
